Fonterra Smart Control
Fonterra Smart Control is a completely new type of individual room controller for surface temperature regulation. The innovative regulation sets up individual heating circuits dynamically and in a fully automated way. To do this, it measures both the supply temperature at the distributor and the current room temperatures as well as the return temperature of each individual heating circuit. Resulting from these measurements, it automatically carries out an ongoing, dynamic, hydraulic compensation.
The result is the perfect, learning and userdependent setting of surface temperature regulation per room – all by itself. For users, this is expressed in the highest level of comfort and reduced costs for both heating and cooling.
Fonterra Smart Control is a completely new type of individual room controller for surface temperature regulation.
The technology
The Smart Control operating software is designed in such a way that it can be operated intuitively. In addition to general settings, heating profiles can also be entered for the individual rooms.
Fonterra Smart Control reacts automatically to all temperature influences (e. g. through ventilation, chimney, sun) and prevents these having an effect on the heating performance.
-
Further features
- intelligent regulation for all surface heating and cooling systems
- ultra-sensitive room thermostats observe the slightest temperature differences
- “Plug and Play” principle through pre-assembled plug-in connector
- actuator modules allocate the heating circuits to the relevant rooms
- analysis of the necessary supply temperature to optimise the heating curve
- preservation of floor temperature even with external heat influence
- operation with smartphone, tablet, laptop or using building control system
- the analysis of measurements prevents any overshooting of the room temperature when reaching the target temperature
- dynamic, hydraulic compensation, through continual evaluation of supply, room and return temperature for each heating circuit
The advantages

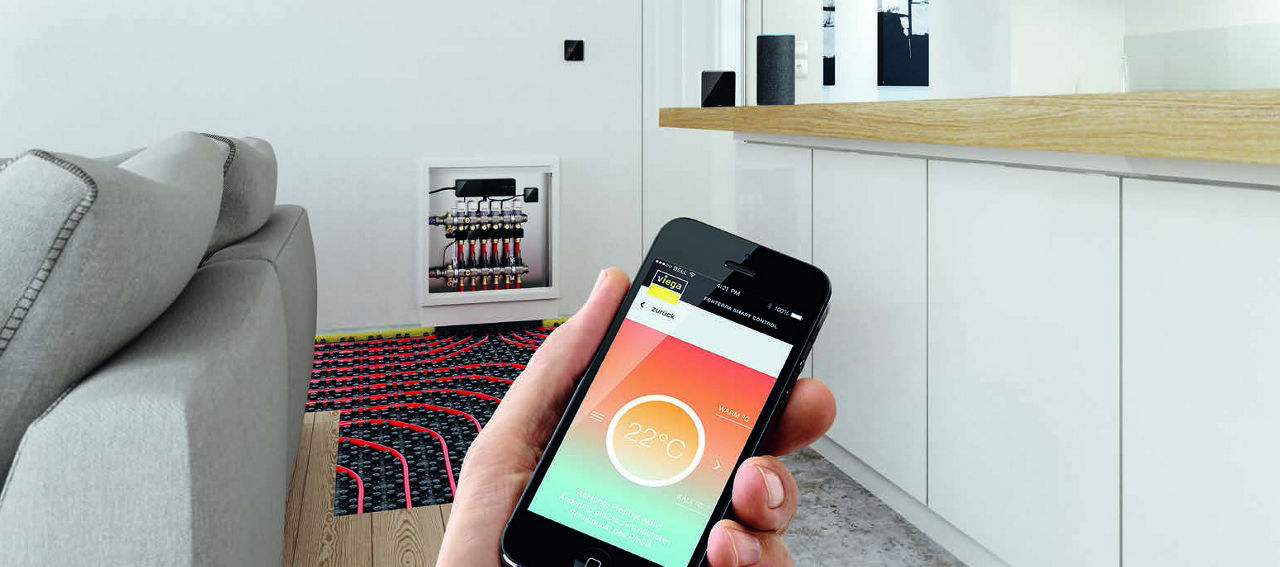

Fonterra Smart Control is very easy to use. It is possible to carry out both the settings for the first commissioning and the ongoing operation in the WLAN network with a smartphone, tablet or laptop. Intuitively and easily in a browser-based user interface.
The Fonterra system is characterized by a high level of operating comfort. In addition to this central advantage, you will find a list of further advantages here:
-
The advantages at a glance
- planning and operational safety through dynamic, hydraulic compensation: irrespective of installation distances, heating circuit lengths, screed heights, floor coverings, external temperatures or external heat influences
- short reaction times due to no complete deactivation
- absence mode and anticipated return time can be set
- Set-up of output stages for secondary rooms without room thermostat
- rapid heating possible thanks to definition of prioritiesed rooms and determination of user dependant heating profiles
- simple and intuitive operation by technicians and end consumers in WLAN network through browser-based user interface.
Components

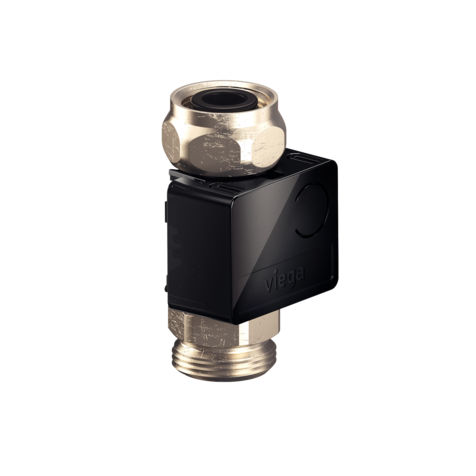

Actuator modules are inserted at the temperature measuring points and connected with one another and the base unit using a broadband cable.
The intelligent base unit communicates with room thermostats and actuator modules.
The highly sensitive room thermostat reacts to the slightest deviations in temperature (available in black and white).
The highly sensitive room thermostat reacts to the slightest deviations in temperature (available in black and white).
