Viega Raxinox
In the shape of Raxinox, Viega is launching the first drinking water pipe for stainless steel installation that can be bent by hand. The innovative pipe is equipped with a pressureresistant and temperature-resistant stainless steel inliner and, together with stainless steel connectors that are raxially pressed, forms an economic alternative for drinking water installations on a storey of a building – with great flexibility and the highest hygiene standards. Flow-optimised series and circular pipes can be installed quickly and effortlessly with Viega Raxinox.
Makes stainless steel bendable by hand.
The technology

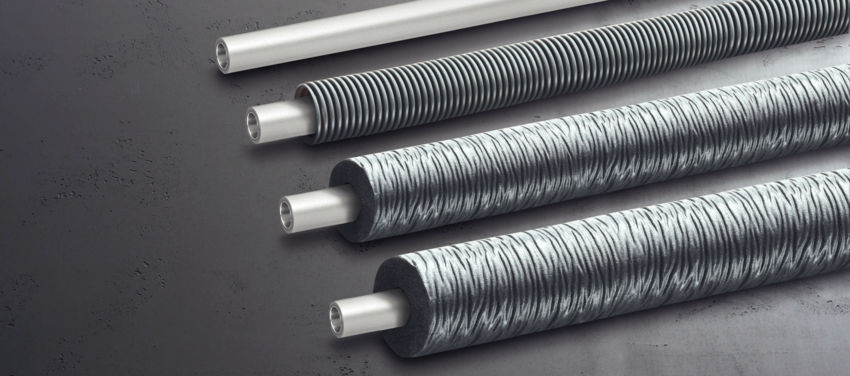

The Raxinox pipe is available blank, in a corrugated pipe and in 9 mm or 13 mm insulation.
-
Components
highly stable stainless inliner
standard conformant pre-insulated pipes
stainless steel connector with minimal cross section constrictions
tried-and-tested raxial press technology without sealing element
pressing with the existing press tools for raxial press technology
The advantages
Viega is launching the first drinking water pipe for stainless steel installation that can be bent by hand. The advantages can be removed from the following overview:
-
The advantages at a glance
all surfaces that come into contact with the media throughout the pipe are made of stainless steel
can be laid quickly and easily straight from the roll
saves a lot of connectors as the pipe can be bent by hand
cost-effective up to the last tapping point
insertion depth is checked through the inspection window on the connector
can be easily cut using the Raxinox shears – makes pipe cutter superfluous
simple transport and comfortable handling
Viega SC-Contur in all Raxinox connectors
The innovative pipe is equipped with a pressureresistant and temperature-resistant stainless steel inliner and, together with stainless steel connectors that are raxially pressed, forms an economic alternative for drinking water installations on a storey of a building – with great flexibility and the highest hygiene standards.
How to use
step 1
Step 1: Cut pipe to length using the Raxinox pipe shears.
step 2
Round off the cut edge.
step 3
Position the connector. Check insertion depth in the inspection window.
step 4
Press – finished!
Components
Moulded parts such as elbows and T-pieces have flowoptimised internal radiuses due to an innovative moulding procedure.
Viega Raxinox double wall panels for easy installation of series and circular pipes.
Moulded parts such as elbows and T-pieces have flowoptimised internal radiuses due to an innovative moulding procedure.
The tried-and-tested raxial pressing guarantees a homogeneous and secure connection.
