Viega system solutions for fire-fighting water systems that are guaranteed to pass inspection

Every year, around 400 people die in Germany as a result of a fire. More than 6,000 people suffer long-term injuries from fire. Professionally planned and installed fire-fighting water and sprinkler units are therefore a vital part of preventative fire safety. Fire-fighting water systems ‘wet’, ‘wet/dry’ or ‘dry’ support effective fire-fighting operations and help to protect people and buildings. Viega’s press technology provides a safe, cost-effective and easy-to-install system solution for this purpose. The permitted system combinations for fire-fighting water and sprinkler units are listed in the overviews below.

Fire-fighting water systems are technical installations that are constantly ready for operation and can protect buildings and save lives.

‘Dry’ and ‘wet/dry’ fire-fighting water systems in accordance with DIN 14462

For professional and reliable installation – Sanpress Inox up to and including DN65 and Sanpress DN80 in combination with the Viega 1.4521 stainless steel pipe. Proof of suitability of this system solution for use in ‘dry’ and ‘wet/dry’ fire-fighting water systems has been provided in accordance with DIN 14462:2023-07 via VdS approvals. Sanpress Inox (≤ DN65): VdS certificate G 4070017 Sanpress XL (DN80): VdS certificate G 426013

	Sanpress Inox		Sanpress
Scope of application	Fire-fighting water systems dry wet/dry		Fire-fighting water systems dry wet/dry
Pipe	Edelstahl 1.4521		Edelstahl 1.4521
Nominal diameter	DN20 DN25 DN32 DN40 DN50 DN65	22,0 x 1,2 mm 28,0 x 1,2 mm 35,0 x 1,5 mm 42,0 x 1,5 mm 54,0 x 1,5 mm 76,1 x 2,0 mm	DN80	88,9 x 2,0 mm
Press connector	Stainless steel		Gunmetal
Sealing element	Dry systems: FKM Wet/dry systems: FKM		Dry systems: EPDM Wet/dry systems: EPDM
Pressure range	1,6 MPa		1,6 MPa
Certificate	VdS: G 4070017		VdS: G 426013*
Note	Replace the sealing elements with FKM; for dimension DN80 (88.9 mm), use Sanpress XL		For dimensions < DN80 (88.9 mm), use Sanpress Inox; For details, see the Sanpress XL instructions for use
^{*VdS certification applies only to components with VdS marking (available from October 2026)}

‘Dry’ fire-extinguishing water systems in accordance with DIN 14462

Connection pipes

For connecting pipes (≤ DN65), use only Sanpress Inox press connectors with FKM replacement sealing elements (Model 2286)
Transition to air vents and bleed valves

Easy transition to air vents and breather valves with Sanpress Inox plug-in piece (Model 2312.1) and Sanpress Inox reducer (Model 2315.1XL)

Note: Use FKM replacement sealing element
note

For Sanpress XL components DN80, no FKM replacement sealing elements are required
Pipe materials

Carry out the piping using pipe material 1.4521 (Model 2205XL) version
riser pipe

All press connections on components of the riser pipe must be made using Sanpress XL DN80.Note: No test certificate available for Sanpress press connections < DN80.

Transition to the service pipes (≤ DN65) using a Sanpress XL T-piece DN80 (Model 2218XL).Another possible version: Sanpress XL T-piece DN80 (Model 2217.2XL).

‘Wet’ fire-fighting water systems in accordance with DIN 14462

For ‘wet’ fire-fighting water systems in accordance with DIN 14462:2023-07, Sanpress Inox, Sanpress, Profipress, Megapress and Megapress S may be used; the recommended solution is Sanpress Inox in combination with 1.4521 pipe.

	Sanpress Inox		Sanpress		Profipress		Megapress / Megapress S
Scope of application	exclusively for fire-fighting water systems – wet		exclusively for fire-fighting water systems – wet		exclusively for fire-fighting water systems – wet		exclusively for wet fire-fighting water systems
Pipe	Stainless steel 1.4401 or 1.4521		Stainless steel 1.4401 or 1.4521		Copper in accordance with DIN EN 1057		Galvanised steel, in accordance with DIN EN 10255, Galvanised in accordance with DIN EN 10240
Nominal diameter	– – DN15 DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100	– – 18,0 x 1,2 mm 22,0 x 1,2 mm 28,0 x 1,2 mm 35,0 x 1,5 mm 42,0 x 1,5 mm 54,0 x 1,5 mm 64,0 x 2,0 mm 76,1 x 2,0 mm 88,9 x 2,0 mm 108,0 x 2,0 mm	– – DN15 DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100	– – 18,0 x 1,2 mm 22,0 x 1,2 mm 28,0 x 1,2 mm 35,0 x 1,5 mm 42,0 x 1,5 mm 54,0 x 1,5 mm 64,0 x 2,0 mm 76,1 x 2,0 mm 88,9 x 2,0 mm 108,0 x 2,0 mm	DN10 DN12 DN15 DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100	12,0 x 1,0 mm 15,0 x 1,0 mm 18,0 x 1,0 mm 22,0 x 1,0 mm 28,0 x 1,5 mm 35,0 x 1,5 mm 42,0 x 1,5 mm 54,0 x 2,0 mm 64,0 x 2,0 mm 76,1 x 2,0 mm 88,9 x 2,0 mm 108,0 x 2,0 mm	DN10 – DN15 DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100	⅜ – ½ ¾ 1 1 ¼ 1 ½ 2 2 ½ 3 4
Press connector	Stainless steel		Gunmetal/silicon bronze		Copper and Gunmetal/silicon bronze		Unalloyed steel
Sealing element	EPDM		EPDM		EPDM		≤ DN50 EPDM/FKM ≥ DN65 FKM
Pressure range	1,6 MPa		1,6 MPa		1,6 MPa		1,6 MPa
Standard, certificate, proof of suitability	DIN 1988-600; DVGW certificate		DIN 1988-600; DVGW certificate		DIN 1988-600; DVGW certificate		MPA test report No. 122000810-PB; mechanical testing in accordance with DVGW W 534

Sprinkler units: Systems and areas of application

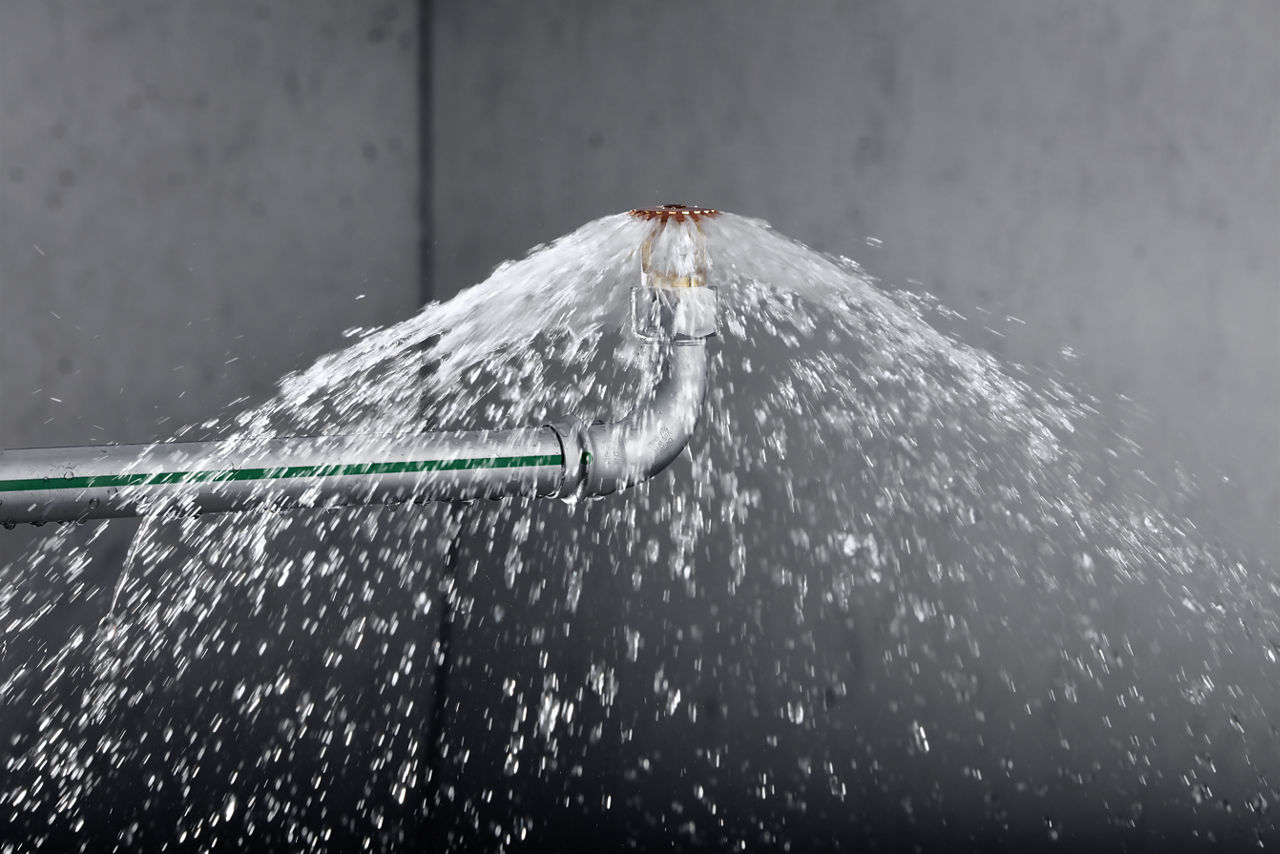

Sprinkler units are fixed, automatically activated fire extinguishing systems which, by delivering water precisely where it is needed as soon as a fire breaks out, delay or completely prevent the spread of fire. They are subject to supervision by specialist certification bodies. For the installation of sprinkler units, Viega offers the ideal solution with Sanpress Inox in combination with 1.4521 stainless steel pipe – with VdS approval.

	Sanpress Inox
Scope of application	Sprinkler units wet dry wet/dry
Pipe	Stainless steel 1.4521
Nominal diameter	DN20 DN25 DN32 DN40 DN50 DN65 DN80 D100	22,0 x 1,2 mm 28,0 x 1,2 mm 35,0 x 1,5 mm 42,0 x 1,5 mm 54,0 x 1,5 mm 76,1 x 2,0 mm 88,9 x 2,0 mm 108,0 x 2,0 mm
Pressverbinder	Stainless steel
Sealing element	Wet systems: EPDM Dry systems: FKM Wet/dry systems: FKM
Pressure range	≤ DN65: 1,6 MPa DN80 and DN100: 1,25 MPa
Certificate	VdS: G 4070017
Fire hazard classes according to VdS CEA 4001	LH, OH1 – OH3, OH4 restricted to exhibition halls, cinemas, theatres, concert halls
Note	No approval for dimension 64.0 mm
